Overview

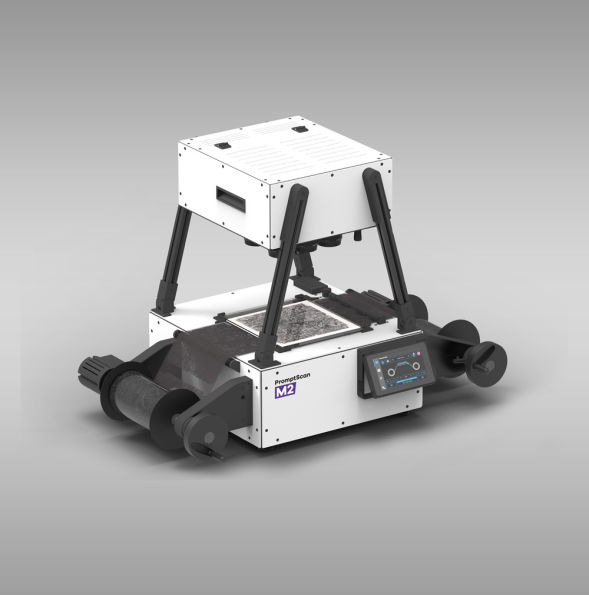

PromptScan M2 is a photogrammetric film aerial film scanner integrating 6 fixed high resolution industrial cameras for rapidly scanning aerial film archives with a pixel size of up to 13 μm and geometric accuracy of 2 μm.
The M3 uses an array of high precision industrial cameras, sensors and lenses. It accurately captures aerial images with a resolution of 13 μm (pixel size, native).
Our downholder glass plates are manufactured to the highest quality standards. The high grade of flateness of the glass provides an almost perfect suppression of Newton's rings.
Four automated raisers lift the plate during every transport movement of the film.
All PromptScan machines provide the full range of scanning modes. M2 uses mono cameras and a changing light source to enable full color resolution and maximum dynamic range. The high dynamic range and separate colors also enables accurate capture of red-based negative films.
Automated exposure control means you do not need to make any manual adjustments.
The M2 is equipped with a motorized system to automatically move the film forward from frame to frame and enable automated scanning.
This is achieved realized using high precision stepper motors and optical sensors.
We are using uniquely designed tension motors to reduce most of vibrations caused by the transport system to guarantee an almost oscillation-free and smooth operation.
The M2 also provides a simple manual transport solution for film rolls like the M1. For some films it is just easier to check and scan manually but still at high speed.
The 7" easy to use and adjustable touch screen allows you to control the loading and movement of the film.
| Features | Specifications |
|---|---|
| Project Size | Optimized for high productivity and thousands of films |
| Configuration | Desktop |
| Pixel Size | 12.5 μm (M2-13) or 15 μm (M2-15) |
| Geometric Accuracy* | 2 μm r.m.s. |
| Maximum Film Size | 240 mm x 150 m |
| Maximum Frame | 240 mm x 242 mm |
| Film Type | Panchromatic & Color |
| Frame Capture Rate** | 3 sec/frame (15 μm: Pan)
4 sec/frame (12.5 μm: Pan) 6 sec/frame (15 μm: Color) 8 sec/frame (12.5 μm: Color) |
| Focal Length | 50 mm |
| Film Transport | Automatic or manual |
| Frame Positioning | Automatic or manual |
| Shipping Dimensions | Pelican case
(115 cm x 65 cm x 42 cm) |
| Shipping Weight | 50 kg (approx.) |
| Rental | Monthly Lease + Unit Rate per Frame |
| Optional Facility | Cut film frames /
Contact print feeder (S/O 300 mm width films) |
| Country of Manufacture | EU / Austria |
* Accuracy can be affected if film has dents or bulges reducing flatness. PromptScan M2 does not move the camera or film during capture, so need not define the movement precision. Accuracy is defined as the mean deviation of the final pixels from a linear (affine) transform applicable for photogrammetric applications.
** Defines the rate to capture each frame of a film including exposure, image download and film transportation when using automated film transport on standard aerial film with standard spacing between frames and minimal changes in auto exposure. Irregular frame spacing, film splicing or need for many varied exposures can affect times.
*** PromptScan M2-XL, additional machine version supporting XL-frames with maximum dimensions of 300 mm x 300 mm, with 16 μm resolution and 3 μm r.m.s.e accuracy will is available on special order.
Product specification are subject to change without notice to enable further improvements.
For smaller archives
Pixel size: 20 μm
Geometric Accuracy: 10 μm r.m.s.e.
FIlm transport: manual
For high productivity
Pixel size: 13 μm
Geometric Accuracy: 2 μm r.m.s.e.
FIlm transport: auto/manual
Configurable for special projects
Pixel size: 12 to 15 μm
Geometric Accuracy: 3 μm r.m.s.e.
FIlm transport: auto/manual
